GEYA CE CB ROHS 1 in 1 Out Dc 550V 1000v Solar Pv Array Combiner Box 1 String for Solar System

#detail_decorate_root .magic-0{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-botto......Keywords:Geya Ce Cb Rohs 1 In 1 Out Dc 550v 1000v Solar Pv Array Combiner Box 1 String For Solar System - Buy Pv Array Combiner Box pv Combiner Box dc Combiner Box Product on Zhejiang Geya Electrical Co., Ltd.

Product Description

00:00

··········This link price is only for GYPV/1-1 550V Without MC4··········

DESCRIPTION

GYPV/1-1 combiner box is suitable for inverter(MAX input voltage Dc550V/DC1000v,1 PV input channel, 1 output channel, single MPPT inverter).Box body is made of PVCengineering materials,with test for fire retardant, temperature rise, anti impact,
antiultraviolet, and other testing.IP65 protection grade.

Design and configuration strictly accordance with the "Technical specification forphotovoltaic junction equipment " cGC/GF 037:2014.Provide users with a safe,brief,beautiful and applicable photovoltaic system products.

OVERVIEW

High reliabilityWith DC FUSE

With DC Surge Protection Device With DC circuit breaker or DC load isolation switch

Strong adaptability

lP65 design, waterproof, anti dust and anti ultraviolet.Strict test for high and low temperature, used widely. The simple installation, the simplified system wiring, the convenient wiring .The box body is made of cold rolled steel and other metal materials.

Flexible configuration

Used for single crystal silicon solar modules, polycrystalline silicon solarmodules, thin film solar modules.Current rating of the photovoltaic fuse,circuit breaker, load isolation switch is modifed.

This configuration is for reference only. Please contact us if you need customization.

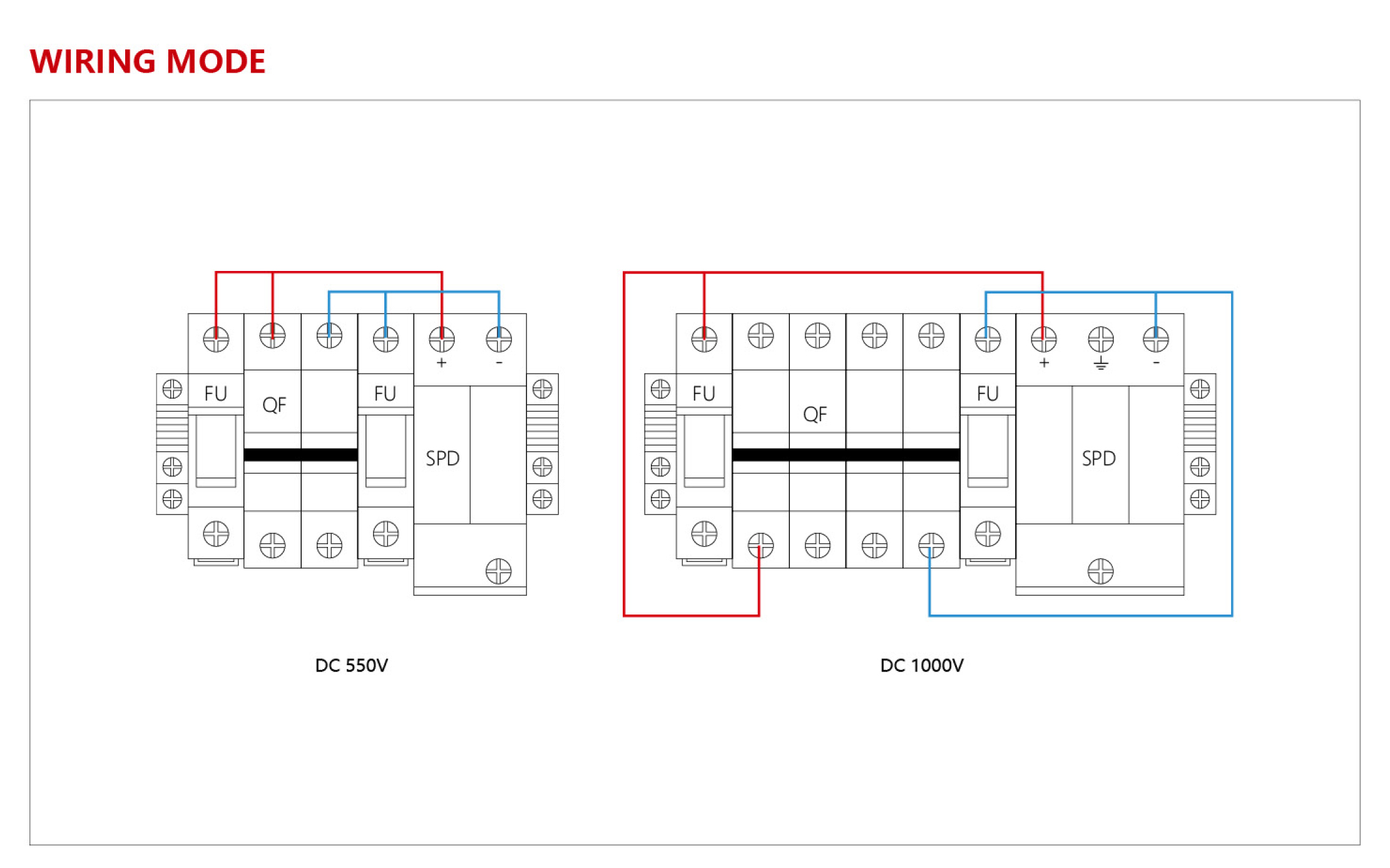

No	Material Description	Quantity
1	Distribution box HA-8 way-5 hole	1
2	Cable gland	5
3	GYM9DC-2P-16A MCB	1
4	GYPV-32 1000VDC Fuse base	2
5	GYPV-1038 1000VDC Fuse	2
6	GSP9-C40PV 600VDC 40kA SPD	1
7	Busbar 1P-12
8	Conductor
