OVERVIEWHHigh reliabilityWith DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch.
Strong adaptability
lP65 design, waterproof, anti dust and anti ultraviolet.Strict test for high and low temperature, used widely.The simple installation, the simplified system wiring,
The box body is made of cold rolled steel and other metal materials.. Flexible configuration
Used for single crystal silicon solar modules,polycrystalline silicon solarmodules,thin film solar modules.Current rating of the photovoltaic fuse,circuit breaker, load isolation switch is modified.
DESCRIPTION

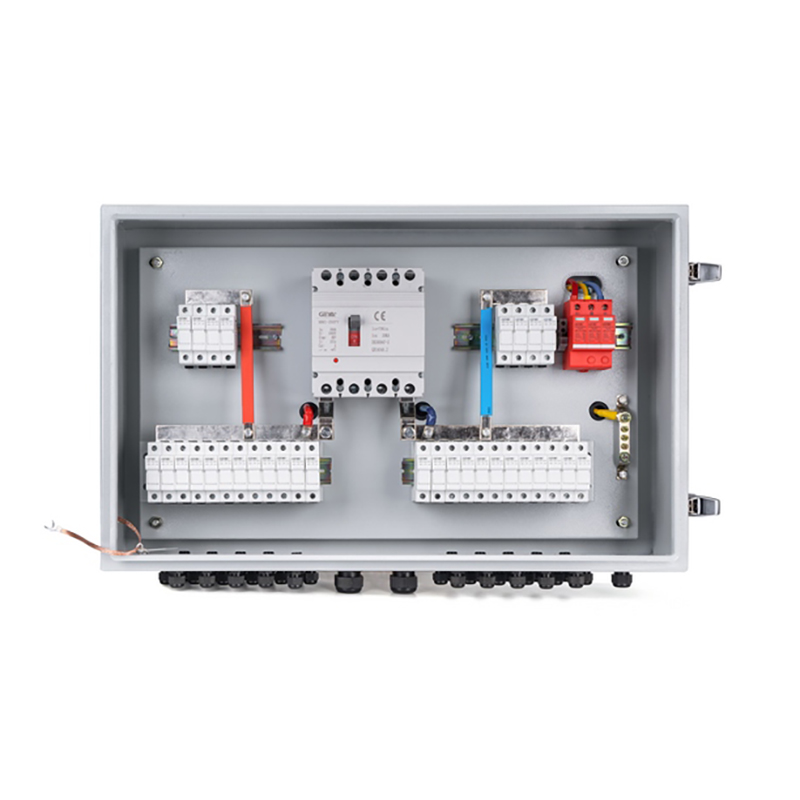

GYPV/16-1 PV combiner box bus synthetic DC input of 16 PV components to 1 output.Each channel is with a fuse.Output side is ecquippedwith lightning protection and circuitbreaker.lt greatly simplify input wiring of DC power distribution cabinet and inverter.Realizelightningprotection, short circuit protection and grounding protection. P/ combiner boxdivided into two types: itllient box and nonr-intelient box.Intelligent PV combiner boxis equiped with monitoring unit, then detect input current of each string, deteoct insidetemperature, detec lighthingprotection status, detect circuit breaker status and summarizeoutput voltage and so on.
Design and configuration stictly accordance with the"Technical specification for photovoliaicjunction equipment " CGCIGF 037.2014.Provideusers with a safe, brief, beautiful andapplicable photovoltaic system products.
The product adopts outdoor wall mounted type, which adapt to the harsh environment.Inadtition to the core components, the other can becustomized by user requirements.
