GEYA New High Voltage Energy Storage Connector IP67 Plastic Contact Plug Screw Socket Battery Terminal Connectors

GEYA New High Voltage Energy Storage Connector IP67 Plastic Contact Plug Screw Socket Battery Terminal Connectors

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya New High Voltage Energy Storage Connector Ip67 Plastic Contact Plug Screw Socket Battery Terminal Connectors - Buy Pin Terminal 14mm 400a 1pin Socket Ev Charger Plug Battery Connector With Busbar Lug heater Connector Socket Female 100a 6mm Energy Storage For 25mm2 Cable new Energy Vehicles Energy Storage Connector Of Power Storage Cabinet Socket High Current Energy Storage Connector Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

··········This link price is only for φ8 Orange Female connector··········

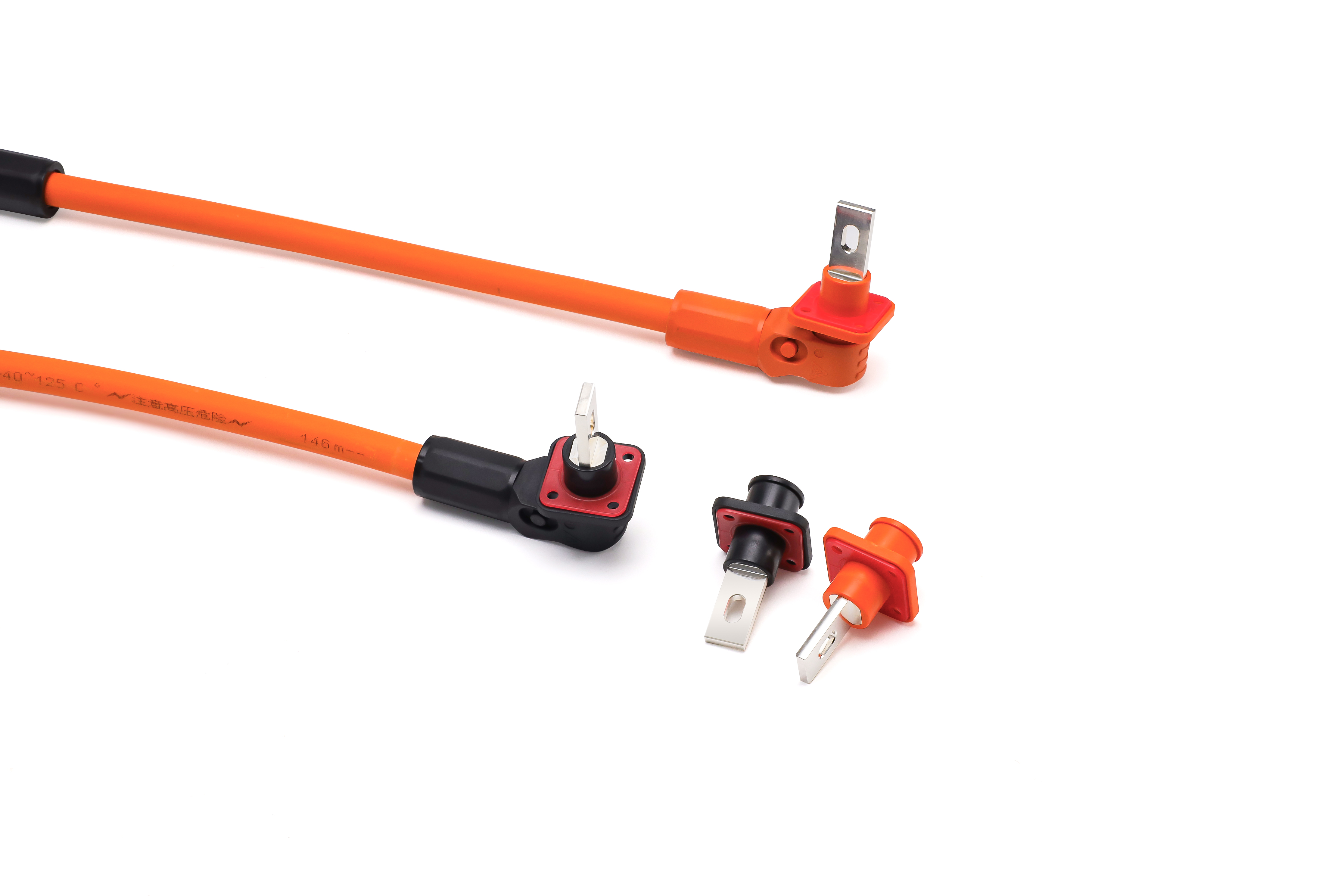

The Geya energy storage connector has a high rated current, small external volume, and strong safety structure. The sword adopts an excellent copper plus silver plating process, reducing the conductive contact impedance, thereby enhancing the conductive performance.
GEYA New High Voltage Energy Storage Connector IP67 Plastic Contact Plug Screw Socket Battery Terminal Connectors
GEYA New High Voltage Energy Storage Connector IP67 Plastic Contact Plug Screw Socket Battery Terminal Connectors
GEYA New High Voltage Energy Storage Connector IP67 Plastic Contact Plug Screw Socket Battery Terminal Connectors
GEYA New High Voltage Energy Storage Connector IP67 Plastic Contact Plug Screw Socket Battery Terminal Connectors
GEYA New High Voltage Energy Storage Connector IP67 Plastic Contact Plug Screw Socket Battery Terminal Connectors

Rated current

50mm2：200A

35mm2：160

25mm2：120A
Rated voltage
1000V DC
Operating temperature range
-40~125℃
Operating ambient temperature
-40~70℃
Withstanding voltage
4500V DC
Insulation resistance
100MΩ
Insertion and removal life
>100times
Shield
NO

Waterproof grade

IP67(Insertion state)

IP2XB
Salt spray test
48hours
UV protection level
fl
Fire rating
UL94-V0
RoHS
YES
Locking mechanism
Spring button
Altitude
<2,000

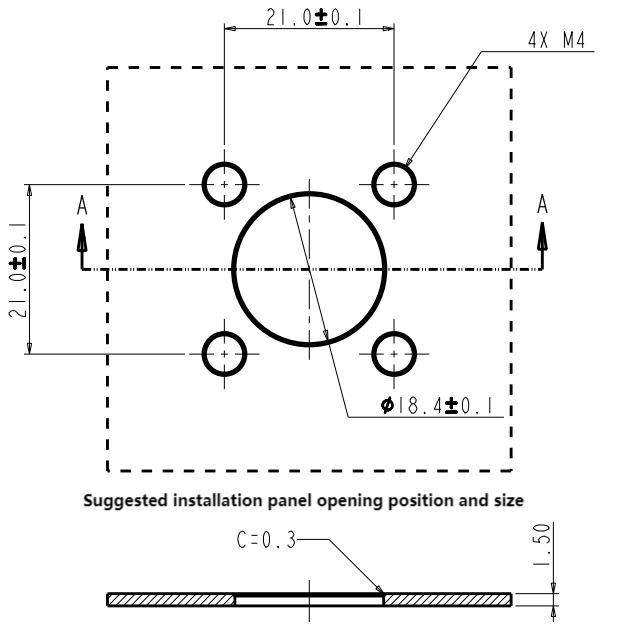

Recommended installation screws
M4,torque force<0.7N.M
Copper bar internal thread installation screw
M6,torque force<6.ON.M
