GEYA Outdoor Solar Energy PV DC 1000V 16 String Combiner Box IP65 Waterproof Junction Box

GEYA Outdoor Solar Energy PV DC 1000V 16 String Combiner Box IP65 Waterproof Junction Box

#detail_decorate_root .magic-0{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-botto......Keywords:Geya Outdoor Solar Energy Pv Dc 1000v 16 String Combiner Box Ip65 Waterproof Junction Box - Buy 16 String Combiner Box dc Combiner Box junction Box Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

00:00
00:00
············This link price is only for GYPV 6-1 1000V Without MC4············
GEYA Outdoor Solar Energy PV DC 1000V 16 String Combiner Box IP65 Waterproof Junction Box
GEYA Outdoor Solar Energy PV DC 1000V 16 String Combiner Box IP65 Waterproof Junction Box
GEYA Outdoor Solar Energy PV DC 1000V 16 String Combiner Box IP65 Waterproof Junction Box
GEYA Outdoor Solar Energy PV DC 1000V 16 String Combiner Box IP65 Waterproof Junction Box

Description

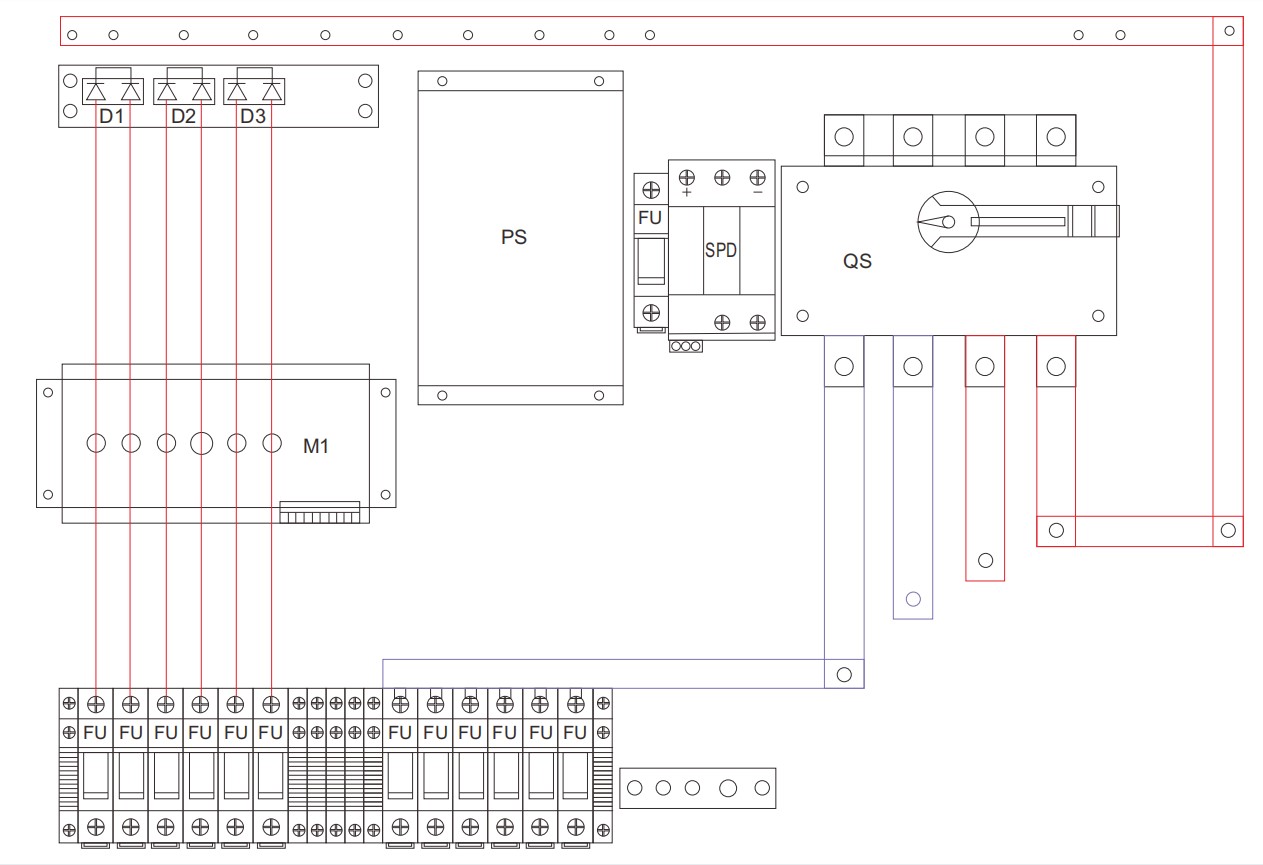

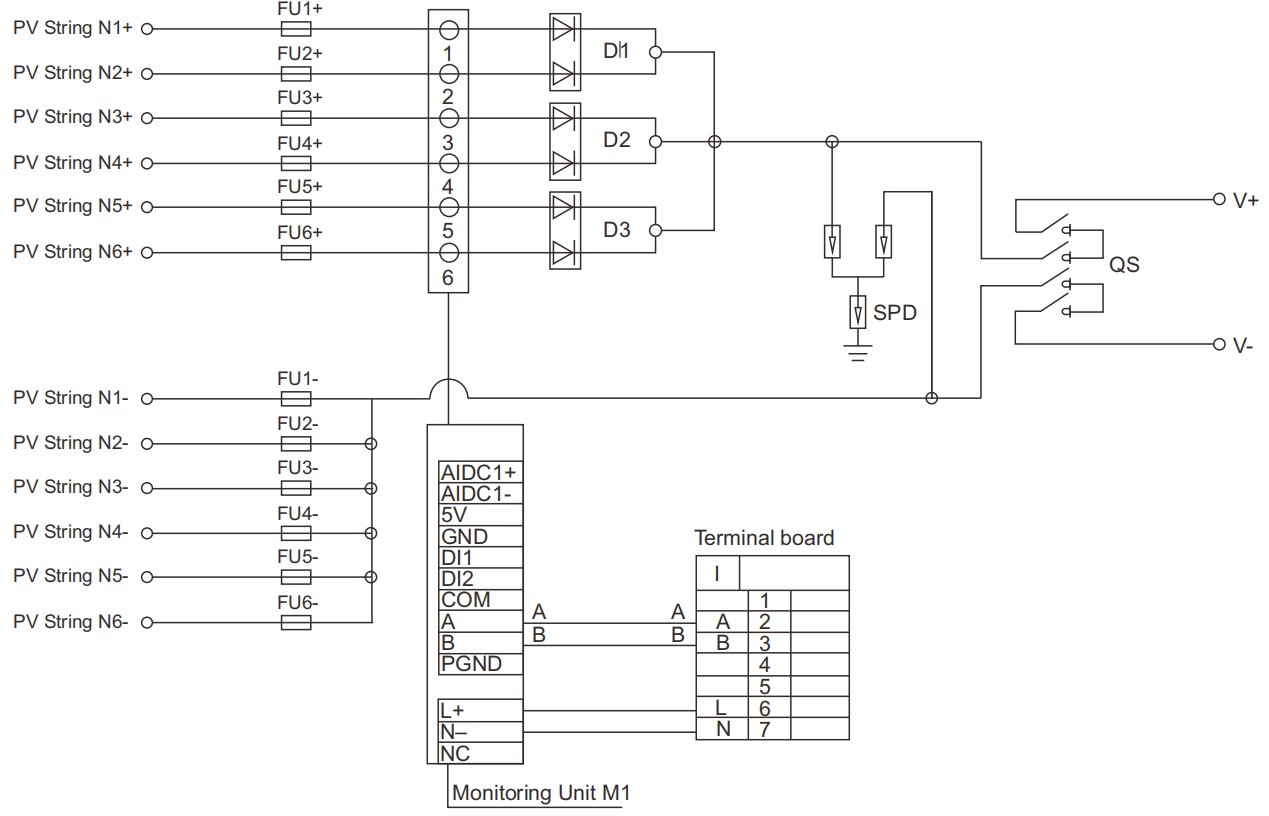

GYPV/6-1 PV combiner box bus synthetic DC input of 6 PV components to 1 output. Each channel is with a fuse. The output side is equipped with lightning protection and a circuit breaker. It greatly simplifies the input wiring of the DC power distribution cabinet and inverter. Realize lightning protection, short circuit protection, and grounding protection. PV combiner box divided into two types: intelligent boxes and non-intelligent boxes. An intelligent PV combiner box is equipped with a monitoring unit, then detects the input current of each string, detects inside temperature, detects lightning protection status, detects circuit breaker status and summarizes output voltage, and so on. Design and configuration strictly in accordance with the “Technical specification for photovoltaic junction equipment” CGC/GF 037:2014. Provide users with safe, brief, beautiful, and applicable photovoltaic system products. The product adopts an outdoor wall-mounted type, which adapts to the harsh environment. In addition to the core components, the others can be customized by user requirements.
Electric parameter
System maximum dc voltage
1000
Maximum input current for each string
15A
Maximum input strings
6
Maximum output switch current
80A/90A
Number of inverter MPPT
1
Number of output strings
1
Lightning protection
Category of test
II Grade protection
Nominal discharge current
20kA
Maximum discharge current
40kA
Voltage protection level
3.8kV
Maximum continuous operating voltage Uc
1050V
Poles
3P
Structure characteristic
Plug-push module
System
Protection grade
IP65
Output switch
DC isolation switch (standard)/DC circuit breaker(optional)
MC4R waterproof connectors
Standard
PV DC fuse
Standard
PV surge protector
Standard
Monitoring module
Optional
Preventing diode
Optional
Box material
PVC
Installation method
Wall mounting type
Operating Temperature
-25C~+55℃
Elevation of temperature
2km
Permissible relative humidity
0-95%,no condensation
Mechanical parameter
Widthx High x Depth(mm)
440x 400 x180
