OVERVIEW. High reliabilityWith DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch.
Strong adaptability
lP65 design, waterproof, anti dust and anti ultraviolet.Strict test for high and low temperature, used widely.

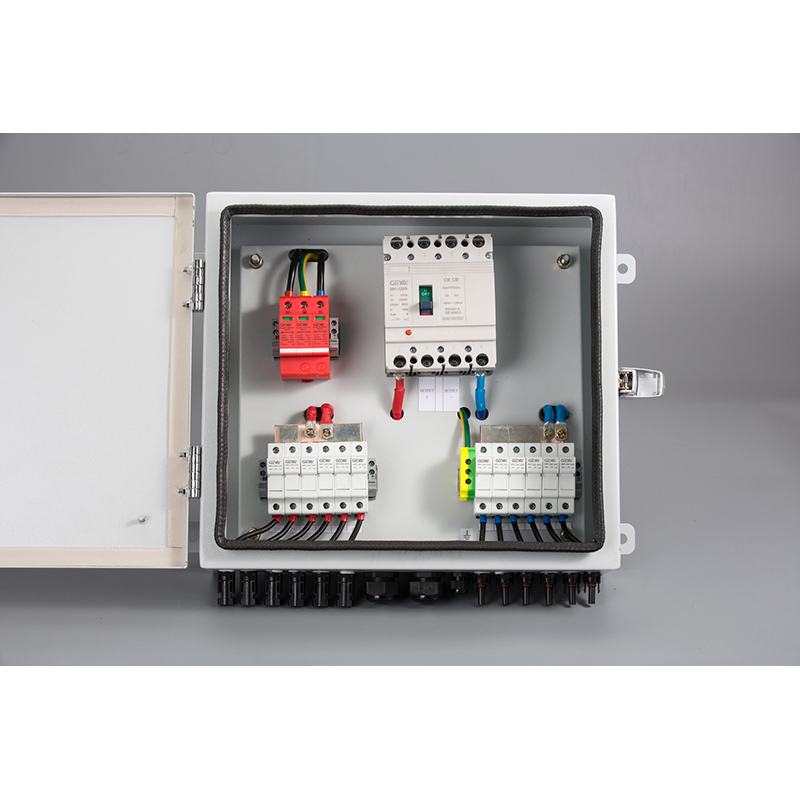

The simple installation, the simplified system wiring, the convenient wiring .The box body is made of cold rolled steel and other metal materials.
Flexible configuration
Used for single crystal silicon solar modules, polycrystalline silicon solarmodules, thin film solar modules. Current rating of the photovoltaic fuse,circuit breaker, load isolation switch is modifed.
DESCRIPTION

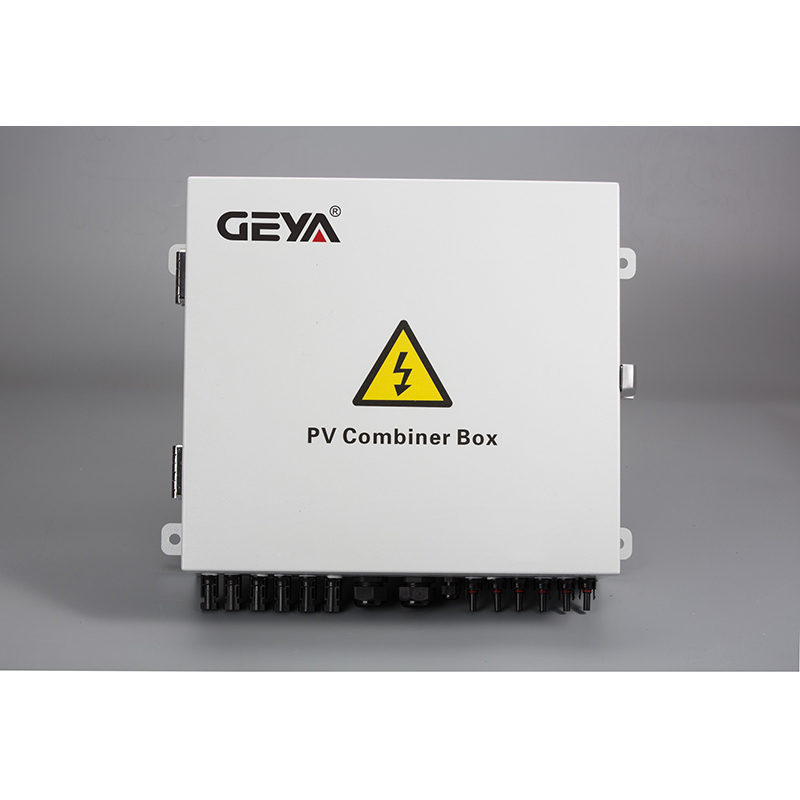

GYPV/2-1 combiner box is suitable for inverter (MAX input voltage Dc550v/DC1000v,2 PV input channel, 1 output channel, single MPPT inverter).Box body is made of PvCengineering materials,with test for fire retardant, temperature rise, anti impact, antiultraviolet, and other testing.IP65 protection grade.
Design and configuration strictly accordance with the "Technical specification forphotovoltaic junction equipment " CGC/GF 037:2014.Provide users with a safe, brief,beautiful and applicable photovoltaic system products.
