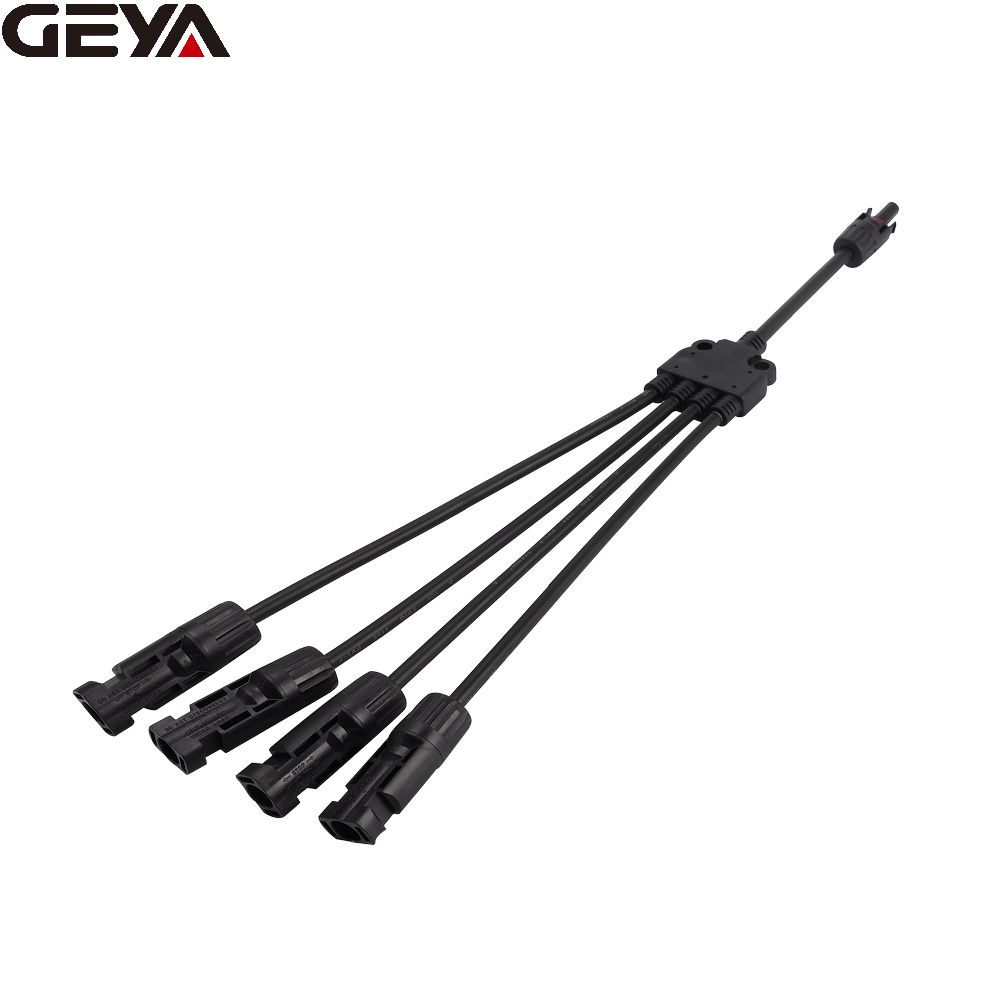

GEYA PV-LTY4 PV 40A 1000V DC 2.5-6.0mm2 8cm Connector IP67 Solar PV Waterproof Connector 1000V Ip67 2 3 4 5 6 8 Pin DC Connector

GEYA PV-LTY4 PV 40A 1000V DC 2.5-6.0mm2 8cm Connector IP67 Solar PV Waterproof Connector 1000V Ip67 2 3 4 5 6 8 Pin DC Connector

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Pv-lty4 Pv 40a 1000v Dc 2.5-6.0mm2 8cm Connector Ip67 Solar Pv Waterproof Connector 1000v Ip67 2 3 4 5 6 8 Pin Dc Connector - Buy Ip67 1000v Dc 30a Male And Female Solar Pv Cable Assembly 3 To 1 Y Branch 3way Solar Panel Connector y Branch Solar Photovoltaic Connector 3 In 1 Waterproof Solar Cable Connector professional Ip67 Power Pv Solar Connector Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

················This link price is only for PV-LTY4 1000V··············
GEYA PV-LTY4 PV 40A 1000V DC 2.5-6.0mm2 8cm Connector IP67 Solar PV Waterproof Connector 1000V Ip67 2 3 4 5 6 8 Pin DC Connector
GEYA PV-LTY4 PV 40A 1000V DC 2.5-6.0mm2 8cm Connector IP67 Solar PV Waterproof Connector 1000V Ip67 2 3 4 5 6 8 Pin DC Connector
GEYA PV-LTY4 PV 40A 1000V DC 2.5-6.0mm2 8cm Connector IP67 Solar PV Waterproof Connector 1000V Ip67 2 3 4 5 6 8 Pin DC Connector
Connector system
4mm
Rated voltage
1000V DC（IEC）
Rated current
30A
Test voltage
6kV(50HZ,1min.)
Ambient temperature range
-40℃...+90℃(IEC) -40℃...+75℃(UL)
Upper limiting temper ature
+105℃(IEC)
Degree of protection,mated
lp67
Unmated
IP2X
Comtact resistanceof plug connectors
0.5mΩ
Safety class
2
Contact material
Messing,verzinnt Copper Alloy,tin plated
Insulation material
PC/PPO
Locking system
Snap-in
Flame class
UL-94-V0
Salt mist spray test,degree of seventy 5
IEC 60068-2-52
