Product Description

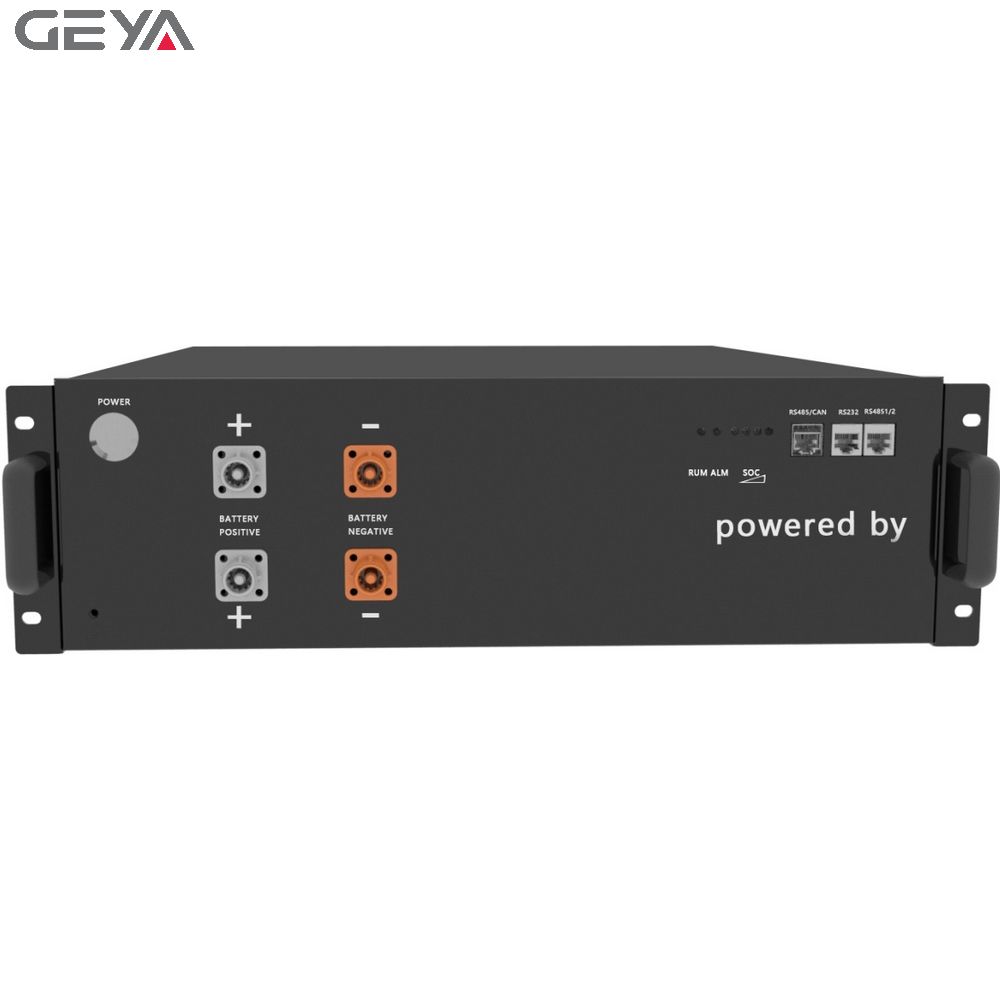

·········This link price is only for GY5.12-LB Low voltage sub-box A 48V50AH·········

Energy Storage Applications Scenario Power generation：

1.Peak shaving FM 2.Smooth wind output power 3.Track plan output 4.Local consumption, reducing abandoned wind and solar 5.Active power control and reactive power compensation Transmission:1.Slow investment in transmission equipment 2.Improve power quality and system reliability 3.Maintain the voltage stability of the transmission grid Distribution:1.Alleviate peak load demand and slow network upgrade and expansion 2.Respond to fault conditions and ensure stable power supply power side Power side:

1.Auxiliary distributed power access 2.Deal with peak load needs, peak arbitrage 3.Adjust and improve power quality, act as UPS/EPS power supply

Item Number	GY5.13-LB	GY10.24-LB	GY15.36-LB	GY20.48-LB	GY25.6-LB
Cell type	LFP(LiFePo4)
Connection way	1P16S	2P16S	3P16S	4P16S	5P16S
Battery module capacity	5.12KWh	10.24KWh	15.36KWh	20.48KWh	25.6KWh
Rated Capacity	100Ah
Rated voltage	51.2V
Charging temperature	0~55℃
Discharge temperature	-10~55℃
Storage temperature	-20~45°C (≤1 month);0~35°C (>1 month)
Working humidity	5~95%(no condensation)
Maximum altitude	＜3000m（＞2000m derating）
Protection degree	IP54
Cell charging cut-off voltage	3.6V
Single discharge cut-off voltage	2.8V
Working voltage range	44.8V~57.6
Communication method	CAN, RS485
Parallel communication	6pcsinMax
BMS power consumption	＜2W（underworkingcondition，） sleep＜ 50mW（inhibernatemode）
Rated operating current	50A	100A	100A	100A	100A
Maximum perating current	100A	110A	110A	110A	110A
Cycle performance	≥6000 times, 25°C
Certification standards	UL9540A、IEC62619/IEC642277、EMC 、UN38.3 、UL1973
Service life	10year
*Size(LWH)*	600850363mm	600850363mm	600850726mm	600850726mm	6008501100mm
Installation	Indoor/Outdoor
Weight	51kg	82kg	133kg	164kg	195kg
Protection function	Overvoltage/overvoltage/overcurrent/short circuit/reverse connection
