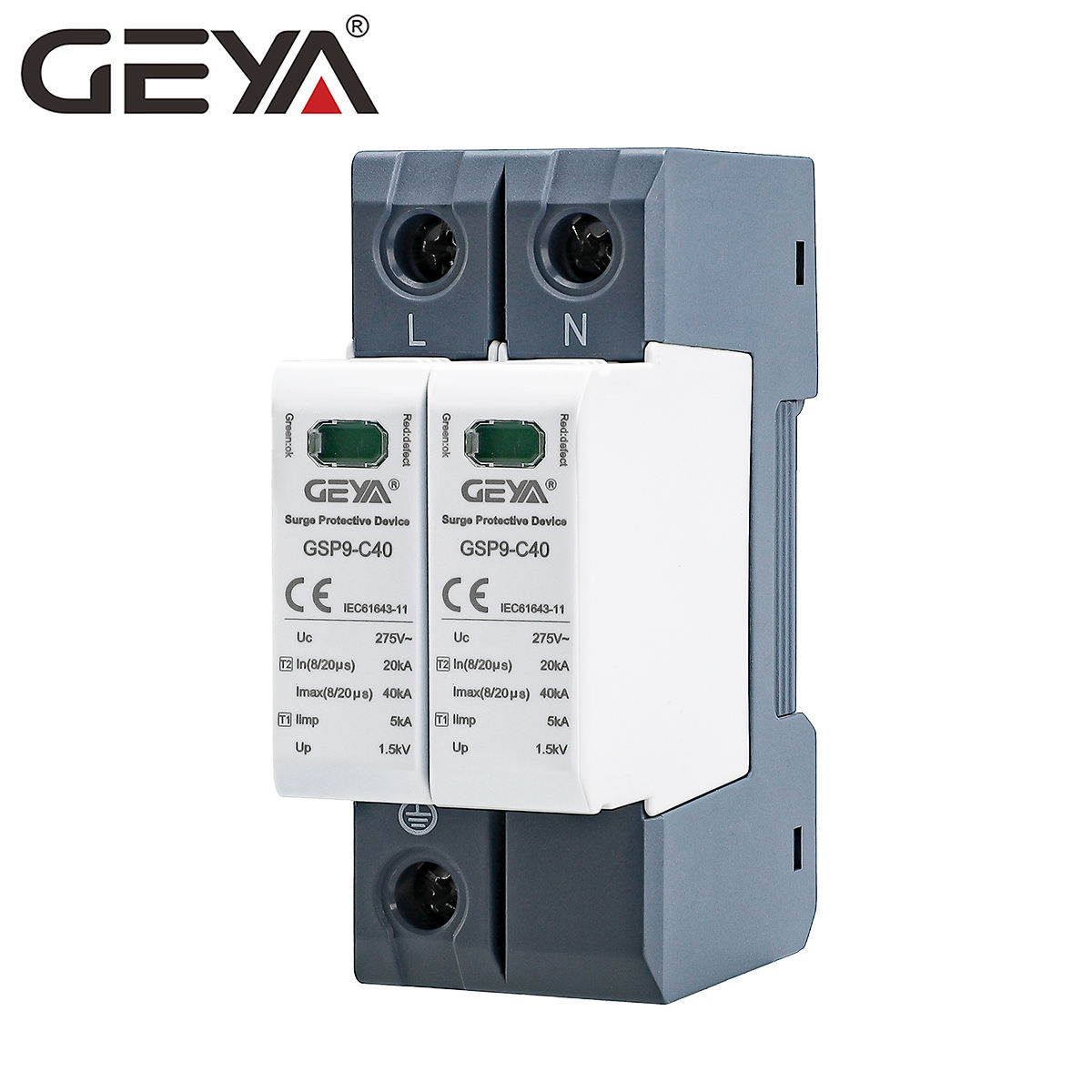

Model | GSP9-C40 |
Test standard | IEC/EN 61643-11;GB18802.11 |
IEC test classification | T2/Class Ⅱ |
Maximum continuous operating voltage Uc | 275V/385V AC |
Nominal discharge current (8/20μs) | 20kA |
Maximum discharge current(8/20μs) | 40kA |
Voltage protection level Up | ≤1.5kV(275VAC) ≤1.8kV(385VAC) |
Response time Ta | 25ns |
Poles | 1P 2P 3P 4P 1P+N-PE 3P+N-PE |
Fuse or circuit breaker selection(A) | 32A |
Connecting cable | 4mm2(L-N);6mm2(PE) |
Method of Installation | 35mm Din Rail |
Type of remote signaling contact Switching contact(Optional) | C+NC: Normally closed C+NO: Normally open C: Common contact |
Switching capacity | AC:250V/0.5A DC:250V/0.1A,125V/0.2A,75V/0.5A |
Cross-sectional area for remote signal contact | Max. 1.5mm2 solid /flexible |
Operating temperature range | 40°C…+80℃ |
Shell material | UL94-VO fireproof material |
