Home > Products > Surge Protection Device > GEYA GSP9-C40 3P 275V 20KA 40KA Thunder Surge Arrester Protectors SPD for Lighting System
GEYA GSP9-C40 3P 275V 20KA 40KA Thunder Surge Arrester Protectors SPD for Lighting System

GEYA GSP9-C40 3P 275V 20KA 40KA Thunder Surge Arrester Protectors SPD for Lighting System

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gsp9-c40 3p 275v 20ka 40ka Thunder Surge Arrester Protectors Spd For Lighting System - Buy Thunder Surge Arrester surge Protective Device spd Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

*******This link price is only for GSP9-C40 3P-40KA 1000V PV*******
GEYA GSP9-C40 3P 275V 20KA 40KA Thunder Surge Arrester Protectors SPD for Lighting System
GEYA GSP9-C40 3P 275V 20KA 40KA Thunder Surge Arrester Protectors SPD for Lighting System
GEYA GSP9-C40 3P 275V 20KA 40KA Thunder Surge Arrester Protectors SPD for Lighting System
GEYA GSP9-C40 3P 275V 20KA 40KA Thunder Surge Arrester Protectors SPD for Lighting System
GEYA GSP9-C40 3P 275V 20KA 40KA Thunder Surge Arrester Protectors SPD for Lighting System
GEYA GSP9-C40 3P 275V 20KA 40KA Thunder Surge Arrester Protectors SPD for Lighting System
GEYA GSP9-C40 3P 275V 20KA 40KA Thunder Surge Arrester Protectors SPD for Lighting System
GEYA GSP9-C40 3P 275V 20KA 40KA Thunder Surge Arrester Protectors SPD for Lighting System
GEYA GSP9-C40 3P 275V 20KA 40KA Thunder Surge Arrester Protectors SPD for Lighting System
GEYA GSP9-C40 3P 275V 20KA 40KA Thunder Surge Arrester Protectors SPD for Lighting System

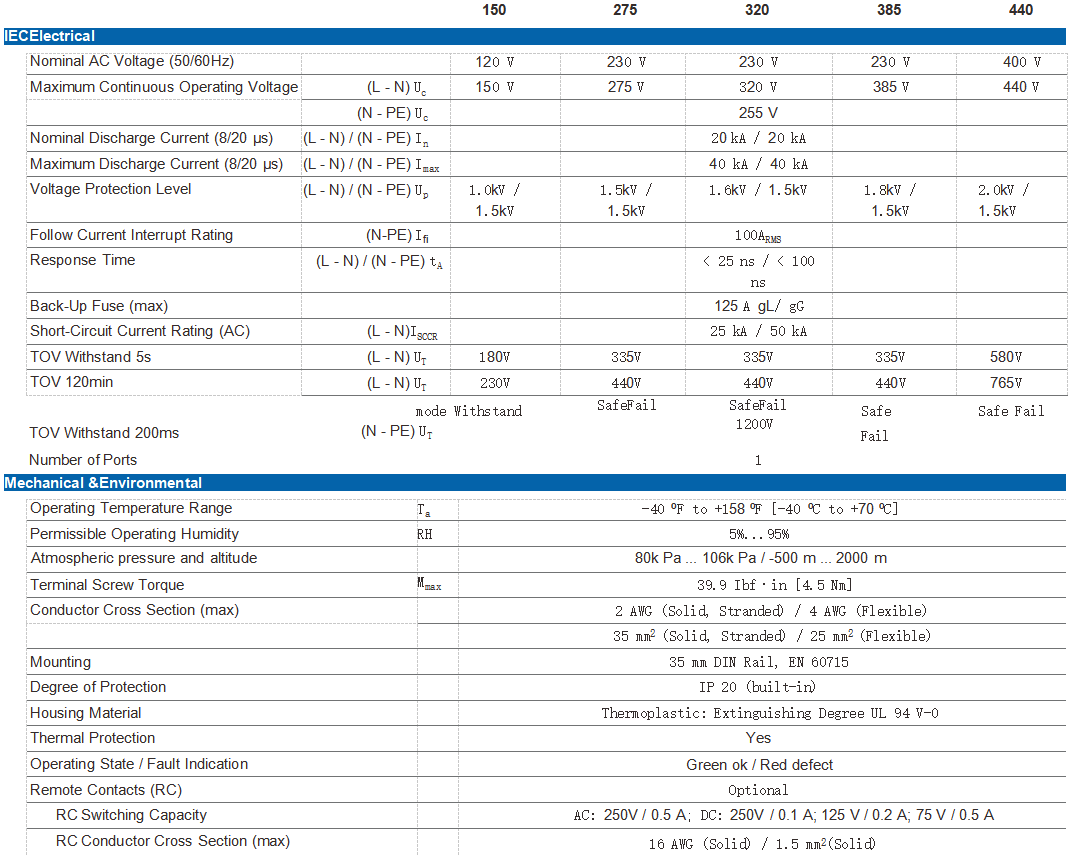

Boards *Network Systems: TT, TN-S *Mode of Protection: L-N, N-PE *Surge Ratings: In = 20 kA (8/20 µs) IEC/EN/UL *Category: Class II / Type 2 / Type 1CA *Protective Elements: High Energy MOV and GDT *Housing: Pluggable Design *Compliance: IEC 61643-11:2011 EN 61643-11:2012
Model
GSP9-C40PV 3P
Test standard
IEC/EN 61643-11;GB18802.11
IEC test classification
T1+T2/Class 1+2
Max. PV voltage [Uc pv]
600V DC
1000V DC
Nominal discharge current (8/20μs)
20kA
Maximum discharge current(8/20μs)
40kA
limp current(10/350μs)
6.25kA
Poles
2P
2P/3P
Voltage protection level Up pv
≤2.6kV
≤3.6kV
Response time Ta
25ns
Connecting cable
4mm2(L-N);6mm2(PE)
Method of Installation
35mm Din Rail
Matched fuse or circuit breaker
32A
Type of remote signaling contact
Switching contact(Optional)
C+NC: Normally closed
C+NO: Normally open
C: Common contact
Switching capacity
AC:250V/0.5A DC:250V/0.1A,125V/0.2A,75V/0.5A
Cross-sectional area for remote signal contact
Max.1.5mm2 solid /flexible
Operating temperature range
40℃...+80℃
