Product Description

············This link price is only for GSP9-C40-3P 40KA 275V············

GSP9-C40-3P series are Class C Surge Protection Devices, they designed to protect against lightning surge voltages in photovoltaic power supply networks. These units must be installed in parallel on the DC networks to be protected and provide common and differential modes protection. TheGSP9-C40-3P series are availa-ble for the main operating voltages in photovoltaic: 500, 600,800,900 and 1000 Vdc.

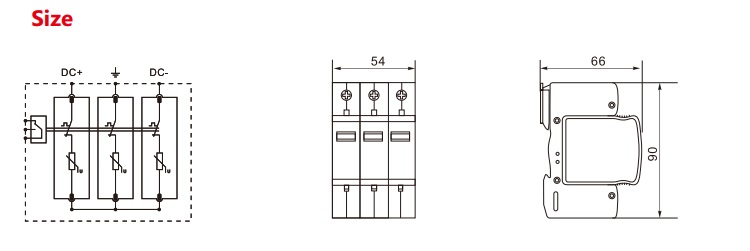

The use of Class C Surge Protection Devices are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long. The electrical diagramof the GSP9-C40-3P series are based on high energy MOVs equipped with specific thermal disconnectors and related failure indicators. A remote signal feature is also available. The GSP9-C40-3P series are made with plug-in modules to allow a fast and easy maintenance in case of fa-ilure (disconnection from the DC network).

Discharge current In: 20kA / Imax: 40kA

Plug-in modules

Remote signal option

IEC 61643-1 compliance

	GSPV8 600	GSPV8 1000
SPD classification according to EN61643-11	Type 2	Type 2
SPD classification according to IEC61643-11	Type 2	Type 2
Max. continuous operating d.c. voltage Ucpv	彡 600V	彡 1000V
Norminal discharge current (8/20 u s) In	20	20
Max. discharge current (8/20 p s) Imax	40	40
Voltage protection level Up	(2.6kV	^3.8kV
Max. backup fuse	125AgL	125AgL
Response time tA	彡 25ns	彡 25ns
Operating temperature range Tu	-40°C -80°C	-40°C -80°C
Operating state/fault indication	green/red	green/red
Cross-section area (Min.)	6 mm²	6 mm²
Cross-section area(Max.)	35mm²	35mm²
For mounting on 35mm Din rail	35mm Din rail
Enclosure material Thermalplastic UL94-V0	Thermalplastic UL94-V0
Degree of protection	IP20
