Model | GSP9-C40PV-2P | ||
Test standard | IEC/EN 61643-11;GB18802.11 | ||
IEC test classification | T1+T2/Class 1+2 | ||
Max. PV voltage [Uc pv] | 600V DC | 1000V DC | |
Nominal discharge current (8/20μs) | 20kA | ||
Maximum discharge current(8/20μs) | 40kA | ||
limp current(10/350μs) | 6.25kA | ||
Poles | 2P | 2P/3P | |
Voltage protection level Up pv | ≤2.6kV | ≤3.6kV | |
Response time Ta | 25ns | ||

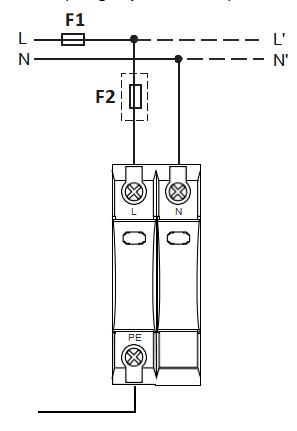

Connecting cable | 4mm2(L-N);6mm2(PE) | ||
Method of Installation | 35mm Din Rail | ||
Matched fuse or circuit breaker | 32A | ||
Type of remote signaling contact | Switching contact(Optional) | ||
C+NC: Normally closed | |||
C+NO: Normally open | |||
C: Common contact | |||
Switching capacity | AC:250V/0.5A DC:250V/0.1A,125V/0.2A,75V/0.5A | ||
Cross-sectional area for remote signal contact | Max.1.5mm2 solid /flexible | ||
Operating temperature range | 40℃...+80℃ | ||
