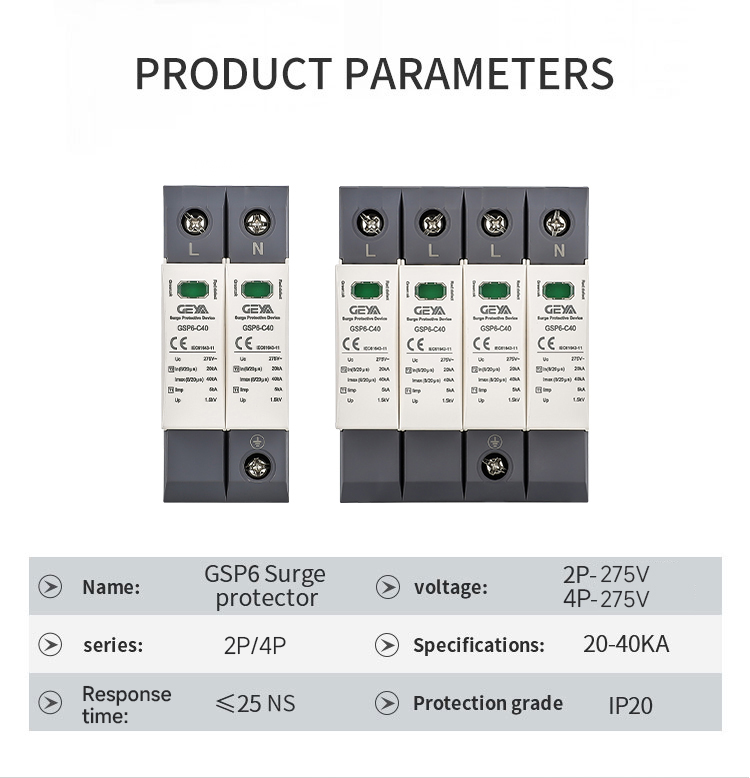

Model | GSP6-C40PV 1000V | ||
Test standard | IEC/EN 61643-11;GB18802.11 | ||
IEC test classification | T2/Class II | ||
Max. PV voltage [ Uc pv] | 800V DC | ||
Nominal discharge current (8/20μs) | 20kA | ||
Maximum discharge current(8/20μs) | 40kA | ||
Poles | 2P/3P | ||
Voltage protection level Up pv | ≤2.6kV | ||
Response time Ta | 25ns | ||
Connecting cable | 4mm2(L-N);6mm2(PE) | ||

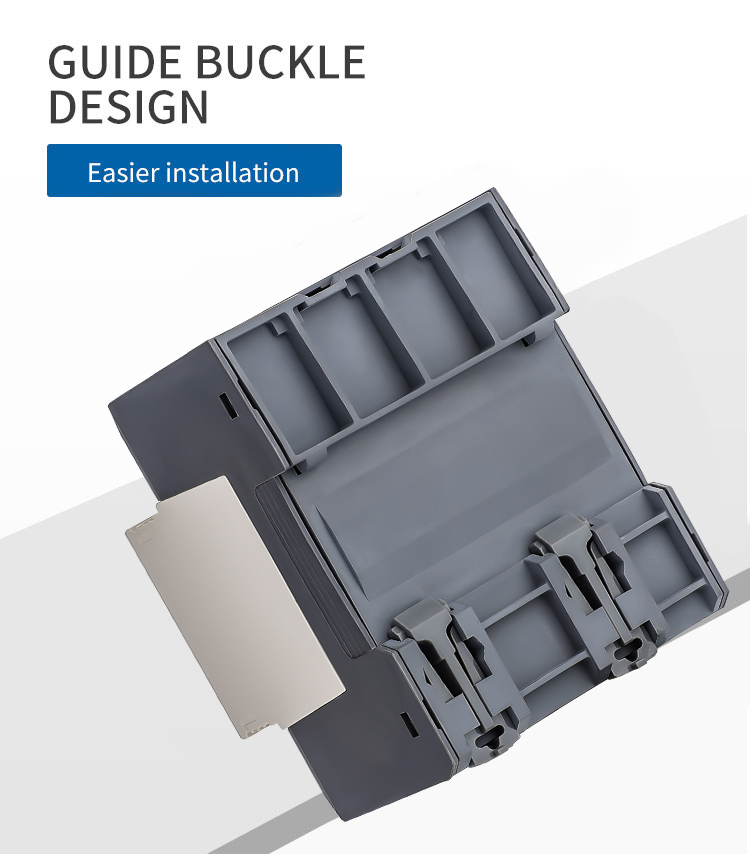

Method of Installation | 35mm Din Rail | ||
Matched fuse or circuit breaker | 32A | ||
Type of remote signaling contact | Switching contact(Optional) | ||
C+NC: Normally closed | |||
C+NO: Normally open | |||
C: Common contact | |||
Switching capacity | AC:250V/0.5A DC:250V/0.1A,125V/0.2A,75VI0.5A | ||
Cross-sectional area for remote signal contact | Max. 1.5mm2 solid /flexible | ||
Operating temperature range | 40°C...+80℃ | ||
