Product Description

············This link price is only for GSP9-C40-2P 40KA 275V············

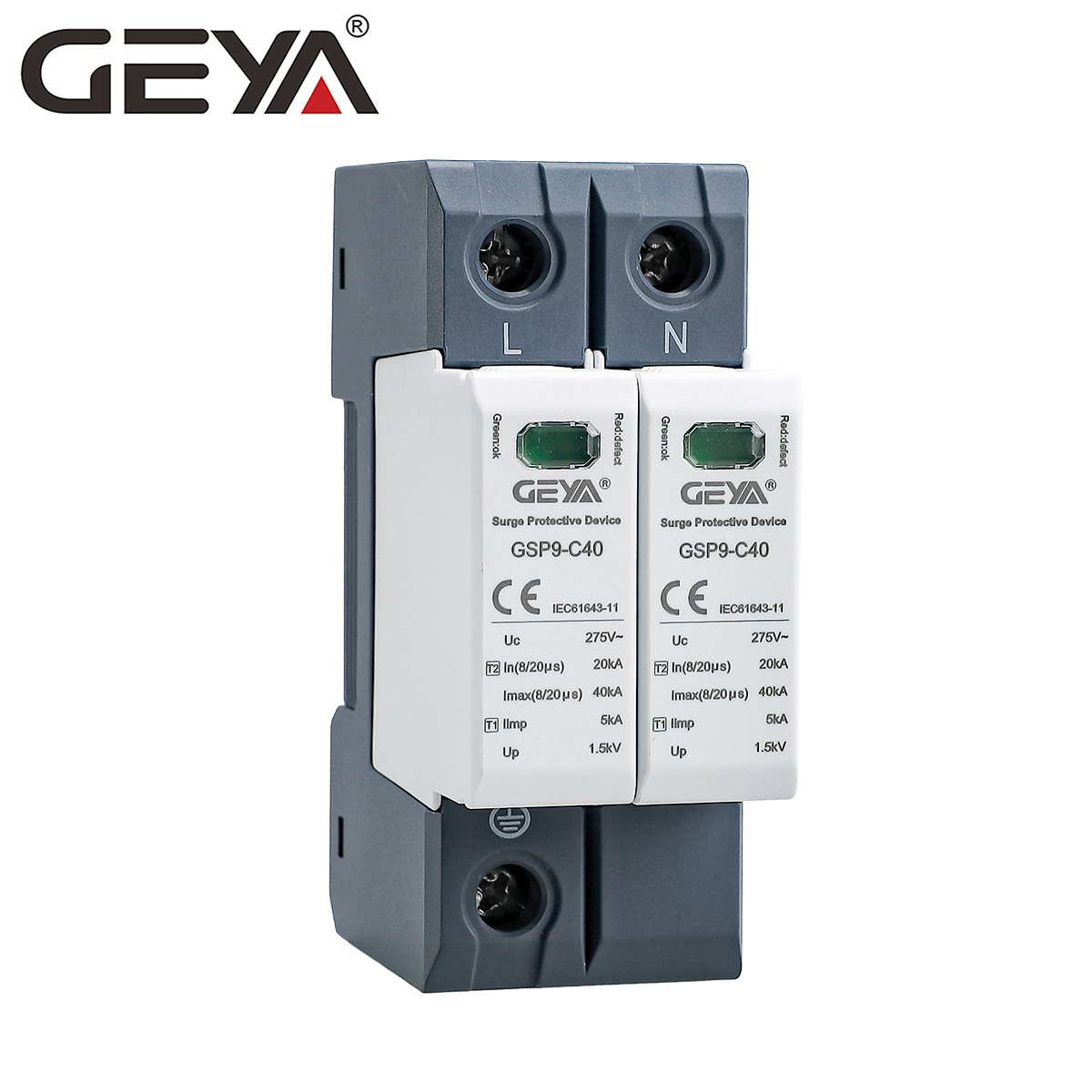

GSP9 series surge protective device (SPD) is suitable for TN-S TN-C-S TT IT etc. power supply system of AC 50/60Hz, 380V, installed on the joint of LPZ1 or LPZ2 and LPZ3, it's designed according to IEC61643-1 GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protective device.

When the SPD fails in breakdown for over-heat and over-current, the failure release will help electric device separate from the power system and give the indication signal, green means normal, red means abnormal, it's also could be replaced for the modulewhen has operating voltage.

Product Features
-Inside over-current and over-heat protection, temperature control open circuit.
-Module design, convenient installation, could be replaced online.
-Smallness leak current, response quickly, less residual voltage.
-Signal indication device, green (normal), red (abnormal).
-New technology, highly energy, clearance discharge pole (N-PE)

Technical Data

SPD classification according to EN61643-11	Type 1+2
SPD classification according to IEC61643-11	Class II
Max. continuous operating a.c. voltage (L-N) Uc	275V
Max. continuous operating a.c. voltage (N-PE) Uc	255V
Lightning impulse current (10/350p s) limp	12.5kA
Norminal discharge current (8/20 p s) In	20kA
Max. discharge current (8/20 y s) (L-N) Imax	50kA
Max. discharge current (8/20 p s) (N-PE) Imax	80kA
Voltage protection level Up	≤1.3kV
Voltage protection level 5kA Up	≤1.1kV
Max. backup fuse	160A gL
Response time tA	≤25nx
Operating temperature range Tu	-40℃-80℃
Operating state/fault indication	green/red
Cross-section area (Min.)	6 mm²
Cross-section area(Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermalplastic UL94-V0
Degree of protection	IP20
