GEYA GSP9-D20-1P-20KA Surge Arrestor 300V 50/60HZ 30KA Voltage Protector SPD

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gsp9-d20-1p-20ka Surge Arrestor 300v 50/60hz 30ka Voltage Protector Spd - Buy Surge Arrestor 1p+n Surge Protection Device ac Surge Protective Product on Zhejiang Geya Electrical Co., Ltd.

Product Description

·············This link price is only for GSP9-D20-1P-20KA-275V·············

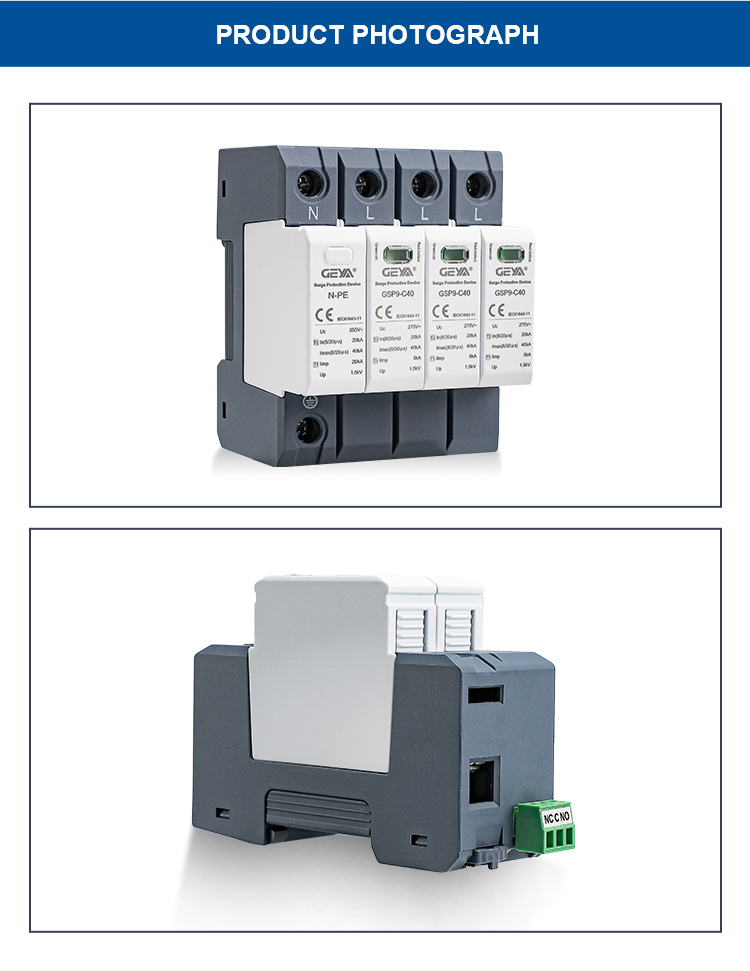

GSP9 series surge protective device (SPD) is suitable for TN-S TN-C-S TT IT etc. power supply system of AC 50/60Hz, 380V, installed on the joint of LPZ1 or LPZ2 and LPZ3, it's designed according to IEC61643-11 GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protective device. When the SPD fails in breakdown for over-heat and over-current, the failure release will help electric device separate from the power system and give the indication signal, green means normal, red means abnormal, it's also could be replaced or the module when has operating voltage. Product Features -Inside over-current and over-heat protection, temperature control open circuit. -Module design, convenient installation, could be replaced online. -Smallness leak current, response quickly, less residual voltage. -Signal indication device, green (normal), red (abnormal). -New technology, highly energy, clearance discharge pole (N-PE)

Technical Data

According to IEC61643-11	Type 2
System Voltage Un	48V
Max. continous operation AC voltage Uc	65V
Norminal discharge current（8/20μs） In	15kA
Maximum discharge current（8/20μs） Imax	30kA
Voltage protection level Up	300V
Maximum backup fuse	63A gL
Response time tA	25ns
Environment temperature Tu	－40℃~80℃
Status indicator	non/red
Mounting	35mm Din Rail
Cross section of wire (Min.)	4mm²
Cross section of wire (Max.)	16mm²
Casing material	Thermal plastic UL94－V0
Degree of protection	IP20
Remote Signalling	Non

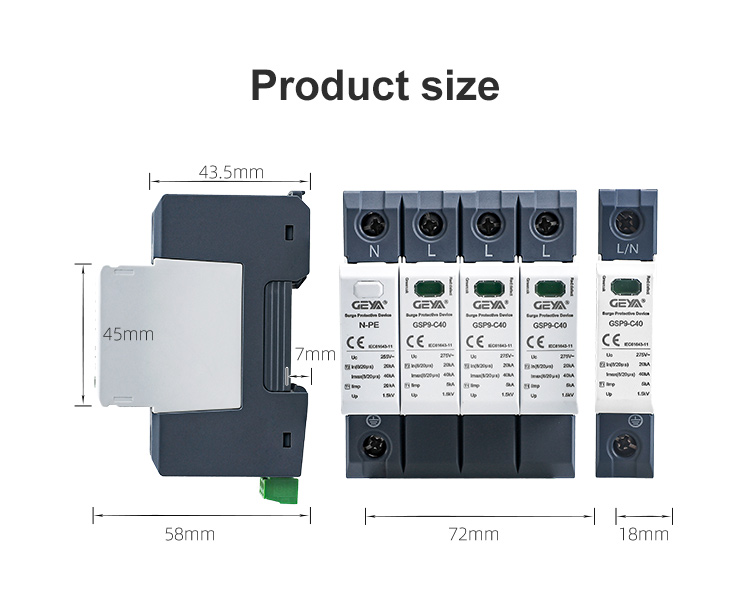

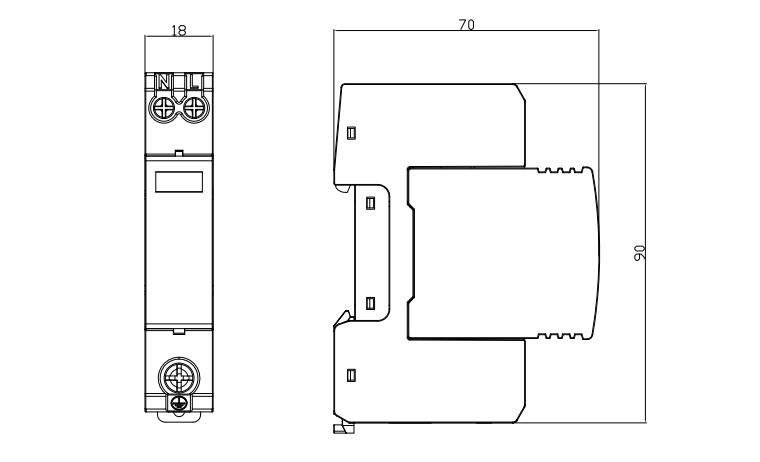

Size

GEYA TEAM ONLINE

24hours
*6 Sales Manager

*20 Sales Assistant
* 5 Technical Engineer
*10 QC Inspector
*120 Professional Worker

GEYA Electrical is established in February 2007, with annual turnover more than 10 million dollars.Headquarters is based in Wenzhou, China.

In the past 12 years, GEYA was focusing on the low voltage electrical and automation control project research, development and production. The current products offers a wide range of low voltage electrical and automation control items including ACB, MCB, MCCB, RCCB, Contactor, Inverter, Solar Energy System, Time Relay, Control Relay, Voltage Relay, PLC Relay Module, Timer Switch, Distribution boxes and other related accessories and components.
GEYA products are certified to required industry standards, with approvals according to ROHS, ISO9001, CCC, CE, CB, SAA, SEMKO, TUV, EN. In addition to providing OEM&ODM service for our worldwide customers, we also welcome our customers to distributor our brand to overseas market, and we will provide our customers more competitive sales policies.
Today, GEYA sales area covers 6 continents, with more than 1000 foreign companies purchasing products from us. There is no doubt we will be promoting our products to more countries.
Our belief is Modernization - Accuracy - Reliability - Quality - Customer Satisfaction.
